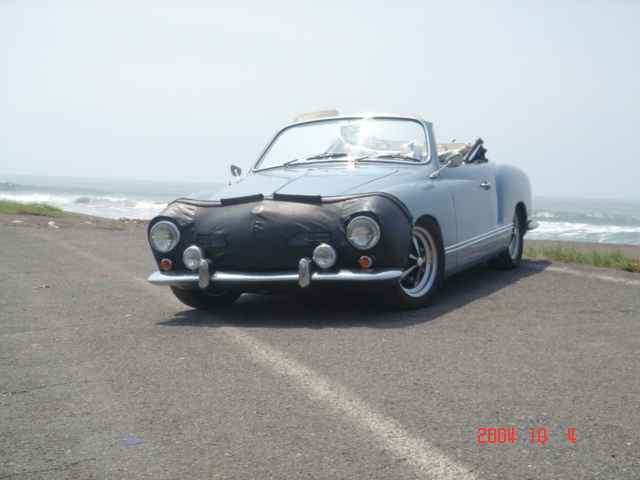

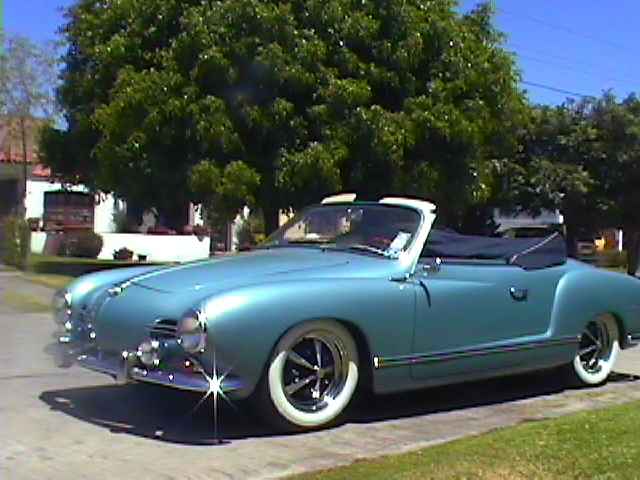

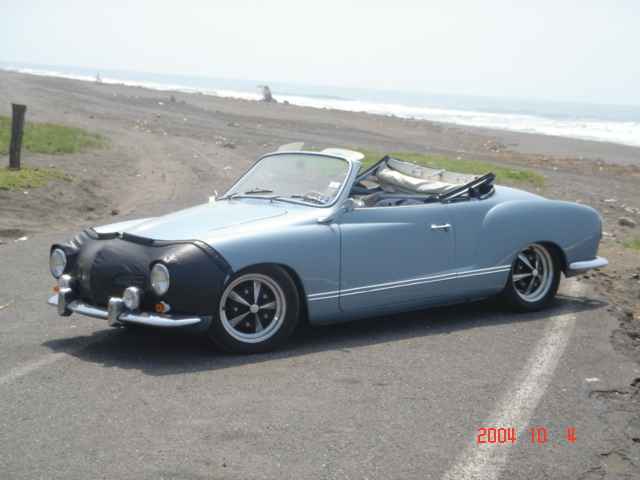

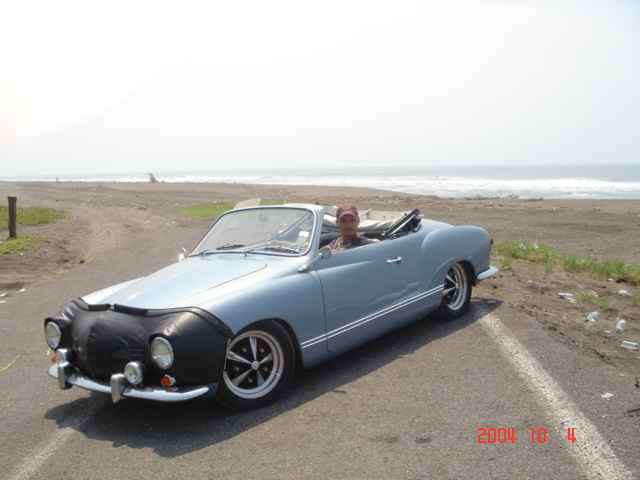

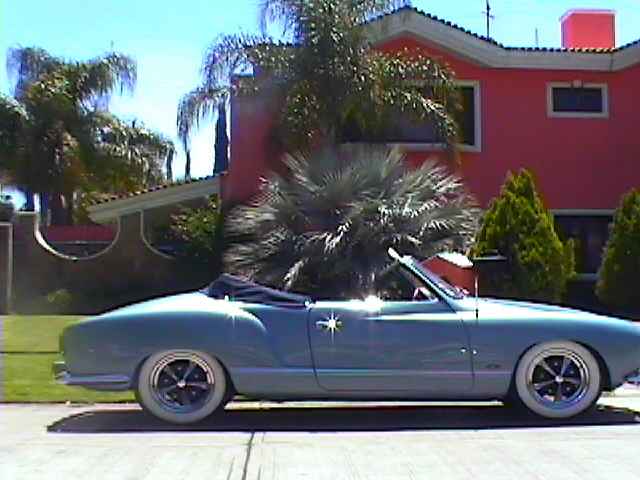

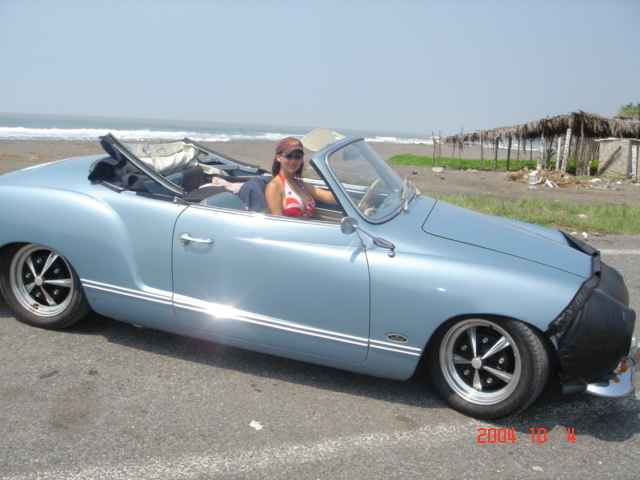

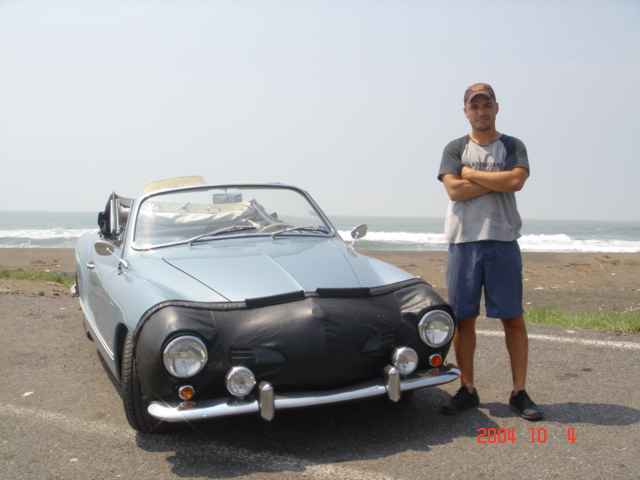

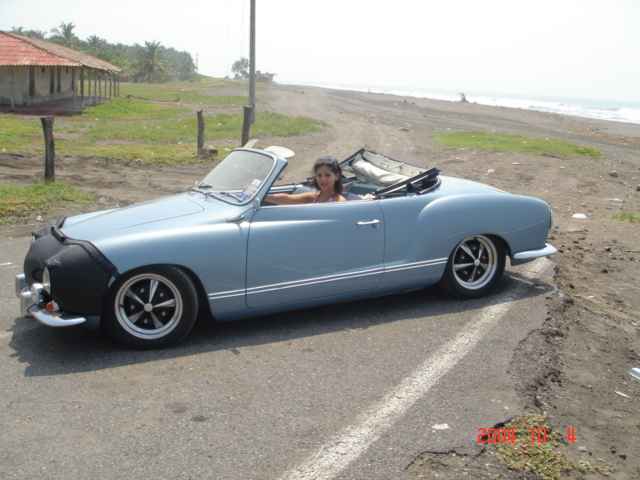

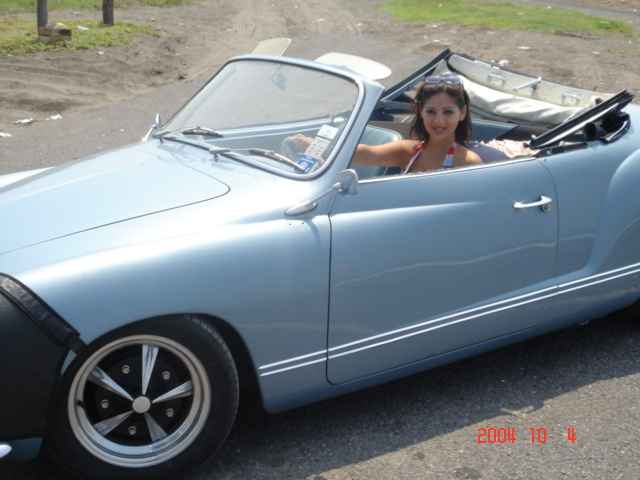

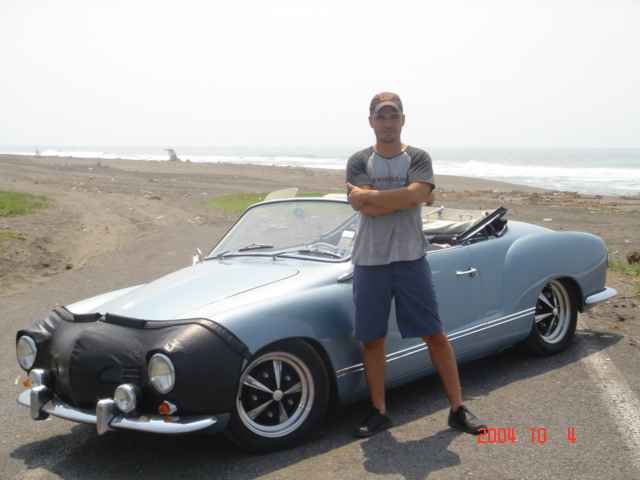

1958 Karmann Ghia convertible with Okrasa TS 1300

Color : Bernina blue L431
Owner : Omar Almada

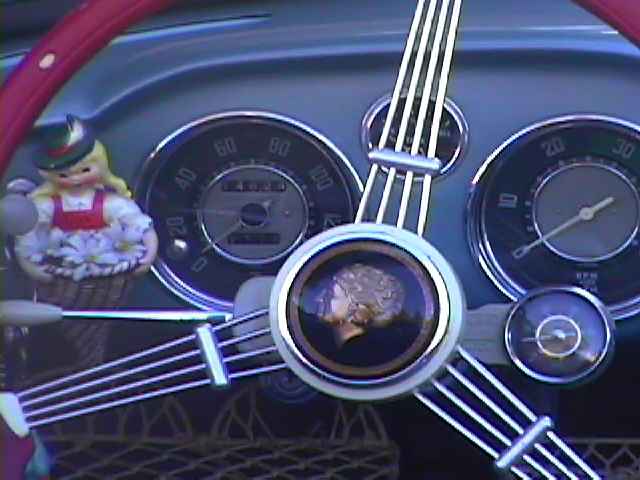

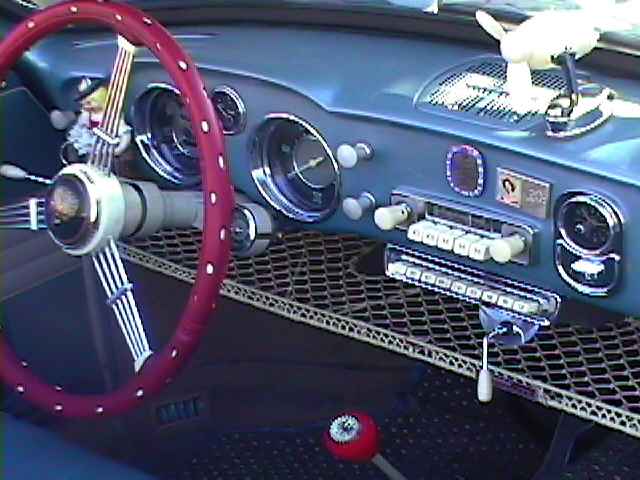

Accessories :  Ghia tach, ghia triptometer, kienzle ashtray clock, original Empi  radar wheels, original banjo wheel, Nos petri horn button, okrasa oil  temp gauge

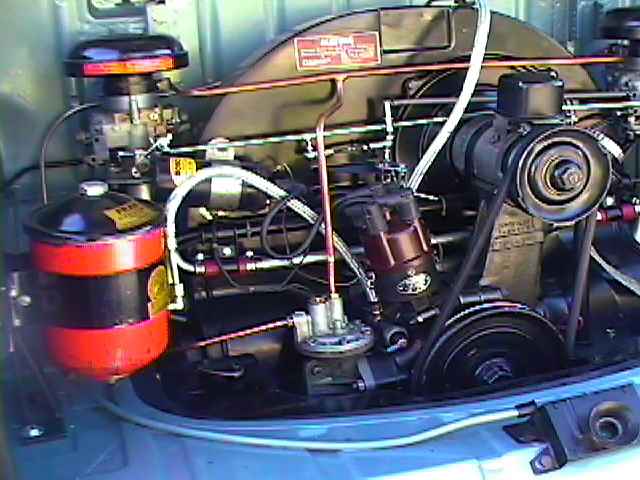

Motor :  Okrasa TS 1300, heads, counterweighted crank, isky hot cam ,  helpholite High com pistons, 010 dist, porsche 356 brakes.

TSV-1300/30 Kit came with the same parts as the TS-1200 but also included a 69.5mm chrome-moly crank which gave a capacity of 1295cc - the stock stroke at that time being 64mm. The crank was also '8 doweled' to the flywheel, an upgrade still used in todays performance flat 4's. There was some clearencing necessary in order for the con-rods to miss the camshaft.

The inlet manifolds were fabricated from steel and then chrome-plated with a small outlet on each for a balance pipe running between the two. The carbs were Solex 32mm and were fitted with Knecht air-filters.
